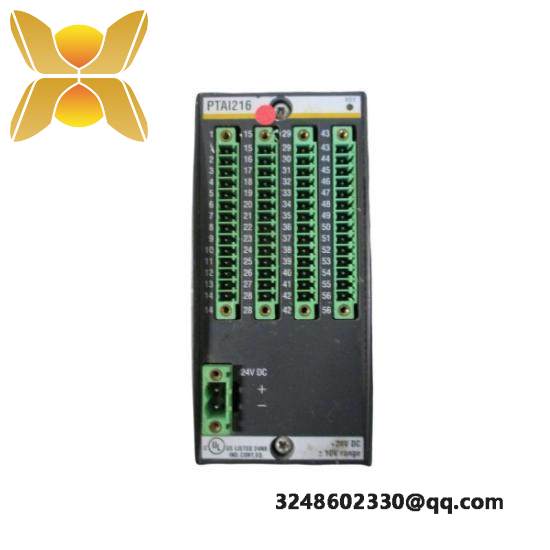

Bachmann PAAI216 Analog Modules, Precision Industrial Control Solutions

In stock

The Bachmann PAAI216 Analog Modules are designed for precise analog signal conversion and processing in industrial control systems, ensuring reliable data transmission and high performance in challenging environments.

Model Type:Analog Input/Output

Module ID:PAAI216

Brand:Bachmann

Input Voltage Range:±10 V

Output Voltage Range:±10 V

Input Current:0 to 20 mA

Output Current:0 to 20 mA

Digital Resolution:14-bit

Max Input Current:35 mA

Max Output Current:35 mA

Operating Temperature:-30°C to +60°C

Weight:0.24 kg

Dimensions:148 mm x 112 mm x 49 mm

Power Supply:18 to 34 VDC

Current Consumption:Typically 70 mA @ 24 VDC

Communication Interface:RS-232/422/485

Baud Rate:Up to 1.5 Mbps

FIFO Buffer Size:128 bytes

Isolation:Single

Filtering:50 μs

Interrupt Channel:1

Connectivity:6-wire system

Bachmann PAAI216 Analog Modules are engineered to deliver exceptional performance in demanding industrial environments. These modules feature a robust design that ensures reliable operation under harsh conditions, making them ideal for applications requiring high precision and accuracy.

With 16 analog input channels, these modules provide the flexibility to interface with a wide variety of sensors, allowing for seamless integration into complex control systems. Their ability to handle both ±1 V and ±10 V input voltages makes them suitable for a broad range of measurement tasks.

Each channel offers a resolution of 14 bits, providing a level of detail that is critical for applications where small variations in signal can significantly impact the outcome. The maximum input current of 35 mA ensures compatibility with a wide array of sensor outputs without compromising performance.

Operated within a voltage supply range of 18 to 34 VDC, the modules are designed to maintain optimal functionality regardless of power fluctuations. Their internal current consumption of typically 70 mA at 24 VDC ensures efficient energy use, contributing to overall system economy and longevity.

The Bachmann PAAI216 Analog Modules come equipped with a comprehensive set of features, including high-quality components, advanced signal processing capabilities, and robust mechanical construction. These features, combined with their user-friendly design, make them an invaluable addition to any industrial control system.
