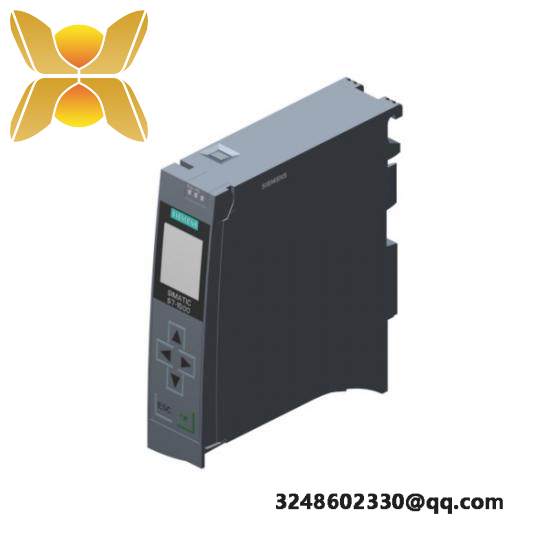

SIEMENS 6ES7516-3AN01-0AB0: 1MB Programmable, 5MB Data Central Processing Unit for PN/DP Modules

CPU Type:PN/DP

Working Memory:1MB for program

Data Memory:5MB for data

Operating System:SIEMENS S7-1500F

Communication Interfaces:Profinet, Profinet-IO

Power Supply:DC 24V

Input Voltage:8…36V DC

Cooling:Passive convection cooling

Dimensions:100mm x 90mm x 90mm

Mounting:Panel mountable

Operating Temperature:-25°C to +60°C

Storage Temperature:-40°C to +85°C

    This CPU 1516-3 PN/DP from Siemens is engineered for seamless integration into advanced automation systems, offering robust performance and reliability. Its compact design and high memory capacity make it suitable for a wide range of industrial applications, including manufacturing, logistics, and process control.

    With an extensive working memory of 1MB for program storage and 5MB for data management, this module ensures efficient execution of complex control algorithms and data processing tasks. The Profinet communication interface enables seamless connectivity with other Siemens devices and third-party systems, enhancing system interoperability and efficiency.

    Featuring passive convection cooling, this CPU operates silently and efficiently within a broad temperature range (-25°C to +60°C), ensuring reliable performance under various environmental conditions. The compact size and panel-mountable design allow for easy installation and integration into existing control panels.

    Built with high-quality materials and Siemens’ proven technology, this control module is designed to withstand harsh industrial environments. It supports both single and redundant configurations, providing redundancy and increased system availability.

    For optimal performance, it’s recommended to pair this CPU with the corresponding SIMATIC ET 200SP I/O modules and SIMATIC S7-1500F programming software. This combination ensures a streamlined setup and maintenance process, maximizing the efficiency and effectiveness of your automation system.
